ADS7608A4A

Synchronous DRAM(4M X 8 Bit X 4 Banks)

ADS7608A4A Features

* JEDEC standard LVTTL 3.3V power supply

* MRS Cycle with address key programs -CAS Latency (2 & 3) -Burst Length (1,2,3,8,& full page) -Burst Type (sequential & Interleave)

* 4 banks operation

* All inputs are sampled at the positive edge of the system clock

* Bur

ADS7608A4A General Description

The ADS7608A4A are four-bank Synchronous DRAMs organized as 4,194,304 words x 8 bits x 4 banks. Synchronous design allows precise cycle control with the use of system clock I/O transactions are possible on every clock cycle. Range of operating frequencies, programmable burst length and programmable .

ADS7608A4A Datasheet (207.77 KB)

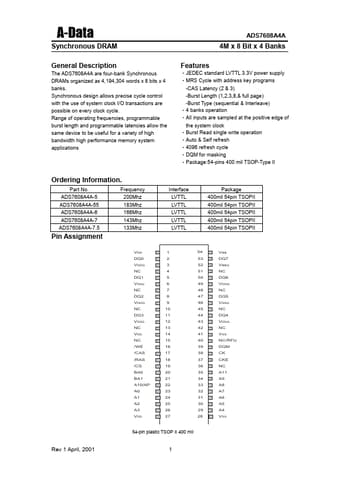

Preview of ADS7608A4A PDF

Datasheet Details

Part number:

ADS7608A4A

Manufacturer:

A-Data Technology

File Size:

207.77 KB

Description:

Synchronous dram(4m x 8 bit x 4 banks).
