ADS7043

12-Bit 1-MSPS SAR ADC

ADS7043 Features

* 1 Industry's First SAR ADC with Nanowatt Power Consumption:

* 243 µW at 1 MSPS with 1.8-V AVDD

* 780 µW at 1 MSPS with 3-V AVDD

* 78 µW at 100 kSPS with 3-V AVDD

* Less than 1 µW at 1 kSPS with 3-V AVDD

* Industry's Smallest SAR ADC:

* X2QFN-8

ADS7043 General Description

The ADS7043 is a 1-MSPS, analog-to-digital converter (ADC). The device supports a wide analog input voltage range (±0.825 V to ±1.8 V) and includes a capacitor-based, successive-approximation register (SAR) ADC with an inherent sample-and-hold circuit. The SPI-compatible serial interface is controll.

ADS7043 Datasheet (1.29 MB)

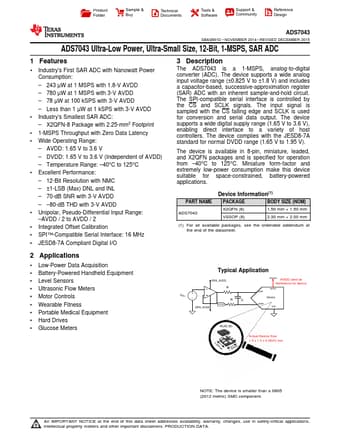

Preview of ADS7043 PDF

Datasheet Details

Part number:

ADS7043

Manufacturer:

Texas Instruments ↗

File Size:

1.29 MB

Description:

12-bit 1-msps sar adc.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community Reference Design ADS7043 SBAS681D

* NOVEMBER 2014 <.
