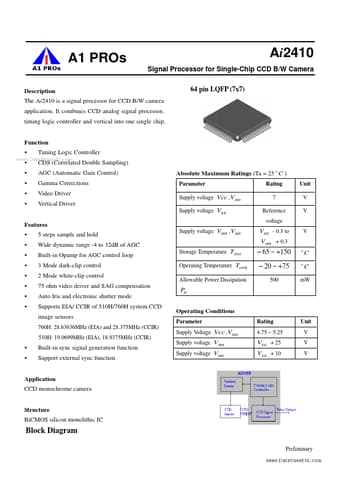

AI2410 Datasheet (A1 PROs) - Signal Processor

AI2410, Signal Processor

The Ai2410 is a signal processor for CCD B/W camera application.

It combines CCD analog signal processor, timing logic controller and vertical into one single chip.

Function y y y y y y Timing Logic Controller CDS (Correlated Double Sampling) AGC (Automatic Gain Control) Gamma Corrections Video Driv

AI2410 Features

* y y y y y y y y 5 steps sample and hold Wide dynamic range -4 to 32dB of AGC Built-in Opamp for AGC control loop 3 Mode dark-clip control 2 Mode white-clip control 75 ohm video driver and SAG compensation Auto Iris and electronic shutter mode Supports EIA/ CCIR of 510H/760H system CCD image sensors
