AI2152

Digital Signal Processor

AI2152 Features

* ‧ Support Ye, Cyan, Magenta, Green complementary color filter CCD sensors for NTSC : Ai325CA(250K), Ai338CA(380K) PAL : Ai329CA(290K), Ai344CA(440K) ‧ Support external EEPROM to store parameter. ‧ Built-in auto white balance control. ‧ Built-in auto exposure control. ‧ Built-in 9bit digital to analo

AI2152 General Description

Ai2152 Digital Signal Processor for Color CCD Cameras The Ai2152 is a digital signal-processing chip for color video camera. It includes timing generator and digital/analog output. Supports 250K/380K NTSC system CCD sensors and 290K/440K PAL system CCD sensors with complementary color filter. It a.

AI2152 Datasheet (184.80 KB)

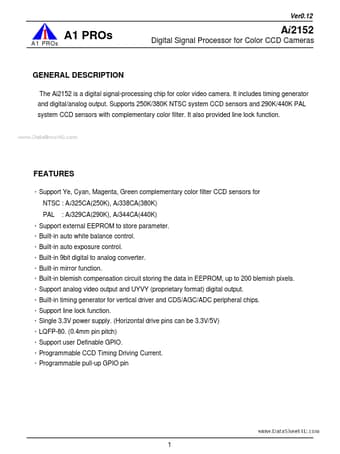

Preview of AI2152 PDF

Datasheet Details

Part number:

AI2152

Manufacturer:

A1 PROs

File Size:

184.80 KB

Description:

Digital signal processor.
