AI2005

GaAs/SiGe Monolithic Microwave

AI2005 Features

* Frequency Band: 24-24.5GHz

* >13dBm Max Tx Power

* 12dB Tx Power control range

* 37dB Rx gain

* 24dB Rx gain control range

* 11dB Rx SSB NF @ IF≥100kHz, max RF gain

* -16dBm IP1dB RF power @ min RF VGA gain

* Temperature range from -40°C to +125°C

* DC bias: 3.3

AI2005 Datasheet (1.38 MB)

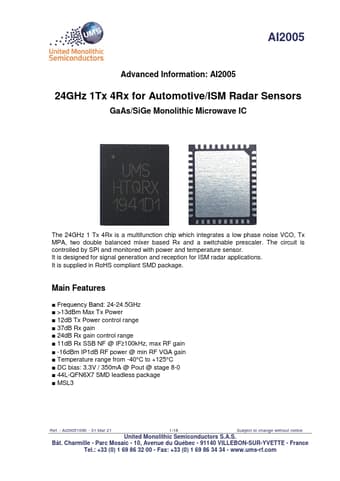

Preview of AI2005 PDF

Datasheet Details

Part number:

AI2005

Manufacturer:

United Monolithic Semiconductors

File Size:

1.38 MB

Description:

Gaas/sige monolithic microwave.
AI2005 Advanced Information: AI2005 24GHz 1Tx 4Rx for Automotive/ISM Radar Sensors GaAs/SiGe Monolithic Microwave IC The 24GHz 1 Tx 4Rx is a multifun.
