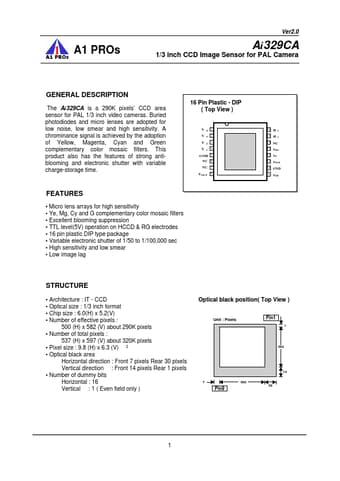

Preview of AI329CA PDF
AI329CA Datasheet Preview Page 2 AI329CA Datasheet Preview Page 3

Datasheet Details

Part number:

AI329CA

Manufacturer:

A1 PROs

File Size:

49.75 KB

Description:

1/3 inch ccd image sensor.

AI329CA, 1/3 inch CCD Image Sensor

The Ai329CA is a 290K pixels’ CCD area sensor for PAL 1/3 inch video cameras.

Buried photodiodes and micro lenses are adopted for low noise, low smear and high sensitivity.

A chrominance signal is achieved by the adoption of Yellow, Magenta, Cyan and Green complementary color mosaic filters.

This pr

AI329CA Features

* of strong antiblooming and electronic shutter with variable charge-storage time. 16 Pin Plastic - DIP ( Top View ) V4 1 V3 2 V2 3 V1 4 GND 5 VNGCG 6 VNSCS 7 VOUT 8 FEATURES

* Micro lens arrays for high sensitivity

* Ye, Mg, Cy and G complementary color mosaic filters

* Exce
