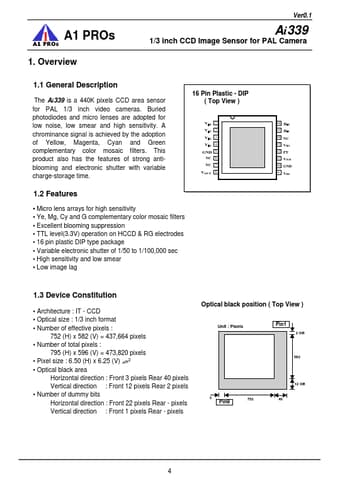

Preview of Ai339 PDF
Ai339 Datasheet Preview Page 2 Ai339 Datasheet Preview Page 3

Datasheet Details

Part number:

Ai339

Manufacturer:

A1 PROs

File Size:

902.79 KB

Description:

1/3 inch ccd image sensor.

Ai339, 1/3 inch CCD Image Sensor

The Ai339 is a 440K pixels CCD area sensor for PAL 1/3 inch video cameras.

Buried photodiodes and micro lenses are adopted for low noise, low smear and high sensitivity.

A chrominance signal is achieved by the adoption of Yellow, Magenta, Cyan and Green complementary color mosaic filters.

This produ

Ai339 Features

* of strong antiblooming and electronic shutter with variable charge-storage time. 16 Pin Plastic - DIP ( Top View ) Vφ4 1 Vφ3 2 Vφ2 3 Vφ1 4 GND 5 VNGCG 6 VNSCS 7 VOUT 8 1.2 Features

* Micro lens arrays for high sensitivity

* Ye, Mg, Cy and G complementary color mosaic filters
