AAT3114 - High Efficiency 1.5X Fractional Charge Pumps

Product Overview

AAT

AAT3114 High Efficiency 1.5X Fractional Charge Pumps by AAT - Datasheet Preview — Datasheet preview – AAT3114

Datasheet Details

Part number	AAT3114
Manufacturer	AAT
File Size	301.40 KB
Description	High Efficiency 1.5X Fractional Charge Pumps
Datasheet	AAT3114 Datasheet

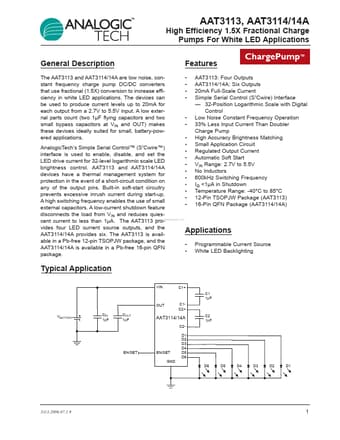

Additional preview pages of the AAT3114 datasheet.

Product details

Description

The AAT3113 and AAT3114/14A are low noise, constant frequency charge pump DC/DC converters that use fractional (1.5X) conversion to increase efficiency in white LED applications.

Features

AnalogicTech’s Simple Serial Control™ (S2Cwire™) interface is used to enable, disable, and set the LED drive current for 32-level logarithmic scale LED brightness control. AAT3113 and AAT3114/14A devices have a thermal management system for protection in the event of a short-circuit condition on any of the output pins. Built-in.
