S-1132 CMOS VOLTAGE REGULATOR

S-1132 Description

S-1132 Series www.ablic.com © ABLIC Inc., 2004-2023 6.5 V INPUT, 300 mA VOLTAGE REGULATOR Rev.4.3_00 The S-1132 Series is a positive voltage regula.
1 VIN Input voltage pin 2 VSS GND pin 3 ON/OFF ON/OFF pin 4 NC. 1 No connection 5 VOUT Output voltage pin. 1.

S-1132 Features

* Output voltage: 1.5 V to 5.5 V, selectable in 0.1 V step
* Input voltage: 2.0 V to 6.5 V
* Output voltage accuracy: ±1.0%
* Dropout voltage: 130 mV typ. (3.0 V output product, IOUT = 100 mA)
* Current consumption: During operation: 20 μA typ. , 40 μ

S-1132 Applications

* Power supply for battery-powered device
* Power supply for personal communication device
* Power supply for home electric appliance
* Power supply for cellular phone
* Packages
* SOT-23-5
* SOT-89-5
* SNT-6A(H) 1 6.5 V INPUT, 300 mA VO

📥 Download Datasheet

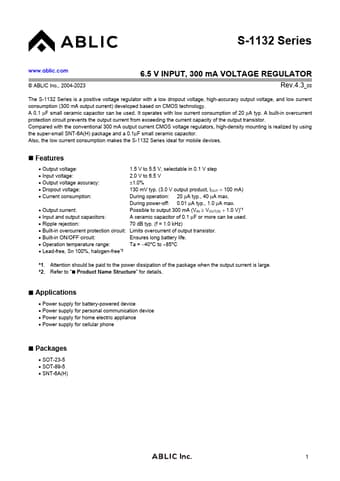

Preview of S-1132 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S-1132
Manufacturer
ABLIC
File Size
596.48 KB
Datasheet
S-1132-ABLIC.pdf
Description
CMOS VOLTAGE REGULATOR
