S-1137 CMOS VOLTAGE REGULATOR

S-1137 Description

S-1137 Series www.ablic.com © ABLIC Inc., 2009-2018 5.5 V INPUT, 300 mA VOLTAGE REGULATOR WITH SOFT-START FUNCTION Rev.2.2_00 The S-1137 Series, de.

S-1137 Features

* Output voltage:
* Input voltage:
* Output voltage accuracy:
* Dropout voltage:
* Current consumption:
* Output current:
* Input and output capacitors:
* Ripple rejection:
* Built-in soft-start circuit:
* Built-in over

S-1137 Applications

* Constant-voltage power supply for battery-powered device
* Constant-voltage power supply for cellular phone, portable device
* Constant-voltage power supply for digital still camera, TV, DVD recorder
* Packages
* SOT-89-5
* SOT-23-5
* SNT-6A(H)

📥 Download Datasheet

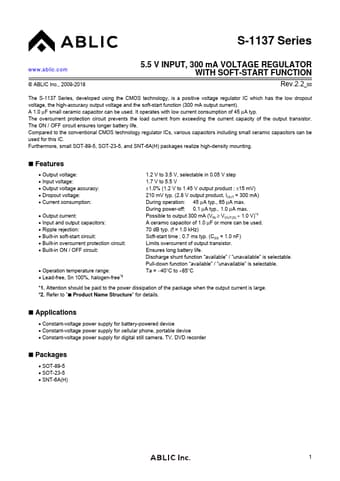

Preview of S-1137 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S-1137
Manufacturer
ABLIC
File Size
787.94 KB
Datasheet
S-1137-ABLIC.pdf
Description
CMOS VOLTAGE REGULATOR
