S-1142 - HIGH-WITHSTAND VOLTAGE LOW CURRENT CONSUMPTION LOW DROPOUT CMOS VOLTAGE REGULATOR

Product Overview

Seiko Instruments

Datasheet Details

Part number	S-1142
Manufacturer	Seiko Instruments
File Size	458.81 KB
Description	HIGH-WITHSTAND VOLTAGE LOW CURRENT CONSUMPTION LOW DROPOUT CMOS VOLTAGE REGULATOR
Datasheet	S-1142 Datasheet

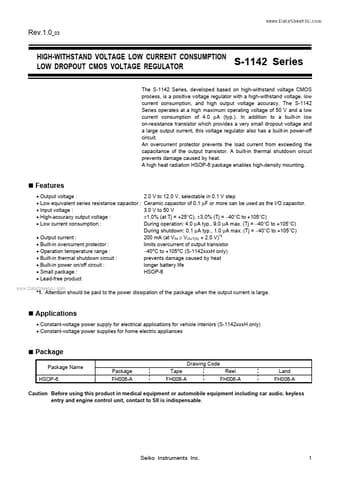

Additional preview pages of the S-1142 datasheet.

Product details

Description

Output voltage pin Table 2 1 2 Figure 2 3 1. Absolute Maximum Ratings Rev.1.0_03 Caution The absolute maximum ratings are rated values exceeding which the product could suffer physical damage.These values must therefore not be exceeded under any conditions.

Features

Output voltage : 2.0 V to 12.0 V, selectable in 0.1 V step.
Low equivalent series resistance capacitor : Ceramic capacitor of 0.1 µF or more can be used as the I/O capacitor.
Input voltage : 3.0 V to 50 V.
High-accuracy output voltage : ±1.0% (at Tj = +25°C), ±3.0% (Tj =.
40°C to +105°C).
Low current consumption : During operation: 4.0 µA typ. , 9.0 µA max. (Tj =.
40°C to +105°C) During shutdown: 0.1 µA typ. , 1.0 µA max. (Tj =.
