S-1142DxxA, S-1142CxxA Datasheet - ABLIC

S-1142DxxA VOLTAGE REGULATOR

S-1142C/DxxA Series www.ablicinc.com © ABLIC Inc., 2012-2013 HIGH-WITHSTAND VOLTAGE LOW CURRENT CONSUMPTION LOW DROPOUT CMOS VOLTAGE REGULATOR Rev.1.1_02 The S-1142C/DxxA Series, developed by using high-withstand voltage CMOS technology, is a positive voltage regulator with a high-withstand voltage, low current consumption, and high-accuracy output voltage. The S-1142C/DxxA Series operates at a high maximum operating voltage of 50 V and a low current consumption of 4.0 A typ. In addition to .

S-1142CxxA-ABLIC.pdf

This datasheet PDF includes multiple part numbers: S-1142DxxA, S-1142CxxA. Please refer to the document for exact specifications by model.

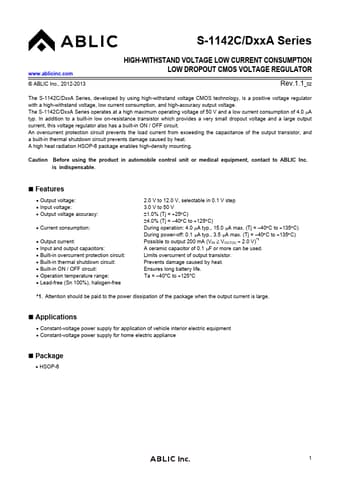

S-1142DxxA Datasheet Preview Page 2 S-1142DxxA Datasheet Preview Page 3

Datasheet Details

Part number:

S-1142DxxA, S-1142CxxA

Manufacturer:

ABLIC

File Size:

435.66 KB

Description:

Voltage regulator.

Note:

This datasheet PDF includes multiple part numbers: S-1142DxxA, S-1142CxxA.
Please refer to the document for exact specifications by model.
