S-1142D CMOS VOLTAGE REGULATOR

1 VOUT Output voltage pin 2 VSS GND pin 3 ON / OFF ON / OFF pin 4 NC *1 No connection 5 VSS GND pin 6 VIN Input voltage pin *1. The NC pin is electrically open. The NC pin can be connected to the VIN pin or the VSS pin. 5 HIGH-WITHSTAND VOLTAGE LOW CURRENT CONSUMPTION LOW.

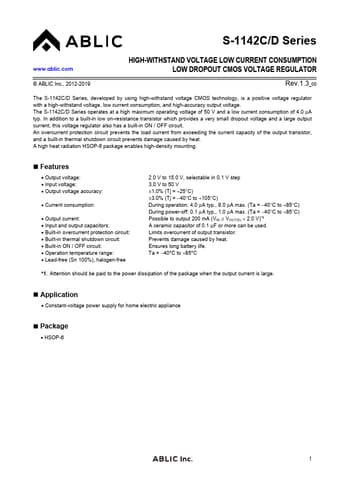

S-1142C/D Series www.ablic.com © ABLIC Inc., 2012-2019 HIGH-WITHSTAND VOLTAGE LOW CURRENT CONSUMPTION LOW DROPOUT CMOS VOLTAGE REGULATOR Rev.1.3_00 The S-1142C/D Series, developed by using high-withstand voltage CMOS technology, is a positive voltage regulator with a high-withstand voltage, low current consumption, and high-accuracy output voltage. The S-1142C/D Series operates at a high maximum operating voltage of 50 V and a low current consumption of 4.0 μA typ. In addition to a built-in l.

S-1142D Features

* Output voltage:

* Input voltage:

* Output voltage accuracy:

* Current consumption:

* Output current:

* Input and output capacitors:

* Built-in overcurrent protection circuit:

* Built-in thermal shutdown circuit:

* Built-in ON

S-1142C-ABLIC.pdf

This datasheet PDF includes multiple part numbers: S-1142D, S-1142C. Please refer to the document for exact specifications by model.
S-1142D Datasheet Preview Page 2 S-1142D Datasheet Preview Page 3

Datasheet Details

Part number:

S-1142D, S-1142C

Manufacturer:

ABLIC

File Size:

454.76 KB

Description:

Cmos voltage regulator.

Note:

This datasheet PDF includes multiple part numbers: S-1142D, S-1142C.
Please refer to the document for exact specifications by model.
