S-1142DxxH, S-1142CxxH Datasheet - ABLIC

S-1142DxxH VOLTAGE REGULATOR

S-1142C/DxxH Series www.ablicinc.com © ABLIC Inc., 2012-2014 HIGH-WITHSTAND VOLTAGE LOW CURRENT CONSUMPTION LOW DROPOUT 105C OPERATION CMOS VOLTAGE REGULATOR Rev.1.2_02 The S-1142C/DxxH Series, developed by using high-withstand voltage CMOS technology, is a positive voltage regulator with a high-withstand voltage, low current consumption, and high-accuracy output voltage. The S-1142C/DxxH Series operates at a high maximum operating voltage of 50 V and a low current consumption of 4.0 A typ..

S-1142CxxH-ABLIC.pdf

This datasheet PDF includes multiple part numbers: S-1142DxxH, S-1142CxxH. Please refer to the document for exact specifications by model.

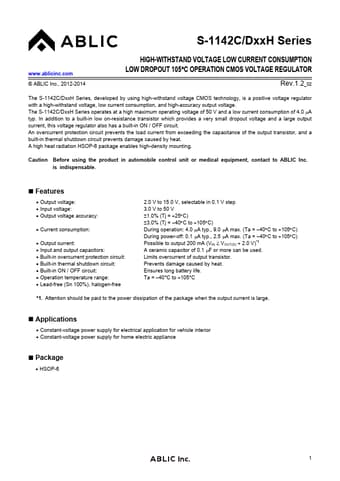

S-1142DxxH Datasheet Preview Page 2 S-1142DxxH Datasheet Preview Page 3

Datasheet Details

Part number:

S-1142DxxH, S-1142CxxH

Manufacturer:

ABLIC

File Size:

453.76 KB

Description:

Voltage regulator.

Note:

This datasheet PDF includes multiple part numbers: S-1142DxxH, S-1142CxxH.
Please refer to the document for exact specifications by model.
