S-1135 CMOS VOLTAGE REGULATOR

S-1135 Description

S-1135 Series www.ablic.com © ABLIC Inc., 2008-2018 5.5 V INPUT, 300 mA VOLTAGE REGULATOR Rev.2.3_00 The S-1135 Series, developed using the CMOS te.

S-1135 Features

* Output voltage:
* Input voltage:
* Output voltage accuracy:
* Dropout voltage:
* Current consumption:
* Output current:
* Input and output capacitors :
* Ripple rejection:
* Built-in overcurrent protection circuit:

S-1135 Applications

* Power supply for battery-powered device
* Power supply for cellular phone
* Power supply for portable equipment
* Packages
* SOT-89-5
* SOT-23-5
* HSNT-6A 1 5.5 V INPUT, 300 mA VOLTAGE REGULATOR S-1135 Series
* Block Diagrams 1. S-1135 S

📥 Download Datasheet

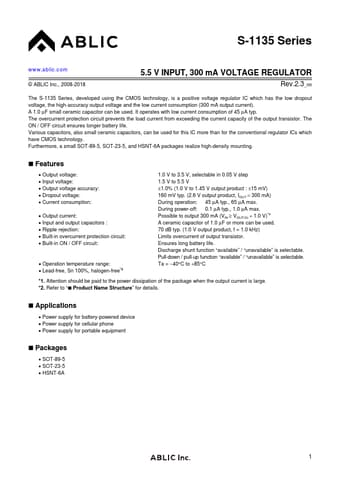

Preview of S-1135 PDF
