S-8245B BATTERY PROTECTION

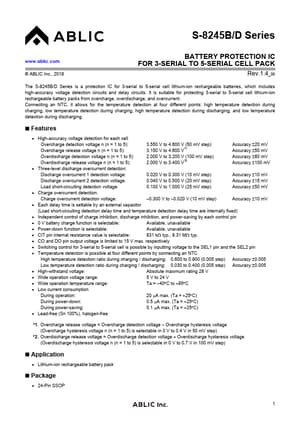

S-8245B/D Series www.ablic.com © ABLIC Inc., 2018 BATTERY PROTECTION IC FOR 3-SERIAL TO 5-SERIAL CELL PACK Rev.1.4_00 The S-8245B/D Series is a protection IC for 3-serial to 5-serial cell lithium-ion rechargeable batteries, which includes high-accuracy voltage detection circuits and delay circuits. It is suitable for protecting 3-serial to 5-serial cell lithium-ion rechargeable battery packs from overcharge, overdischarge, and overcurrent. Connecting an NTC, it allows for the temperature dete.

S-8245B Features

* High-accuracy voltage detection for each cell Overcharge detection voltage n (n = 1 to 5): Overcharge release voltage n (n = 1 to 5): 3.550 V to 4.600 V (50 mV step) 3.150 V to 4.600 V

* 1 Accuracy 20 mV Accuracy 50 mV Overdischarge detection voltage n (n = 1 to 5): Overdischarge rele
