S-8245D, S-8245B Datasheet - ABLIC

S-8245D - BATTERY PROTECTION

S-8245B/D Series www.ablic.com © ABLIC Inc., 2018 BATTERY PROTECTION IC FOR 3-SERIAL TO 5-SERIAL CELL PACK Rev.1.4_00 The S-8245B/D Series is a protection IC for 3-serial to 5-serial cell lithium-ion rechargeable batteries, which includes high-accuracy voltage detection circuits and delay circuits.

It is suitable for protecting 3-serial to 5-serial cell lithium-ion rechargeable battery packs from overcharge, overdischarge, and overcurrent.

Connecting an NTC, it allows for the temperature dete

S-8245D Features

* High-accuracy voltage detection for each cell Overcharge detection voltage n (n = 1 to 5): Overcharge release voltage n (n = 1 to 5): 3.550 V to 4.600 V (50 mV step) 3.150 V to 4.600 V

* 1 Accuracy 20 mV Accuracy 50 mV Overdischarge detection voltage n (n = 1 to 5): Overdischarge rele

S-8245B-ABLIC.pdf

This datasheet PDF includes multiple part numbers: S-8245D, S-8245B. Please refer to the document for exact specifications by model.

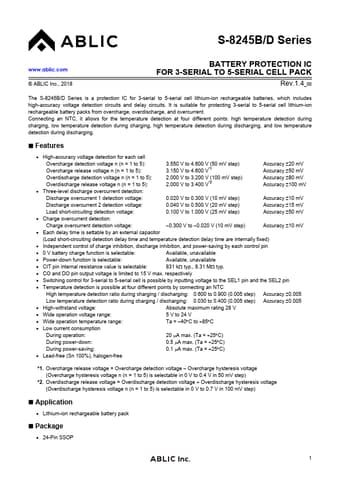

S-8245D Datasheet Preview Page 2 S-8245D Datasheet Preview Page 3

Datasheet Details

Part number:

S-8245D, S-8245B

Manufacturer:

ABLIC

File Size:

928.41 KB

Description:

Battery protection.

Note:

This datasheet PDF includes multiple part numbers: S-8245D, S-8245B.
Please refer to the document for exact specifications by model.
