S-8200A - BATTERY PROTECTION IC

Seiko Instruments

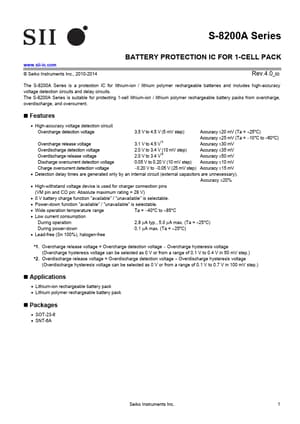

S-8200A Datasheet Preview — Preview of S-8200A PDF

Datasheet Details

Part number	S-8200A
Manufacturer	Seiko ↗ Instruments
File Size	544.55 KB
Description	BATTERY PROTECTION IC
Datasheet	S-8200A-SeikoInstruments.pdf

S-8200A Product details

Description

1 DO Connection pin of discharge control FET gate (CMOS output) 2 VM 3 CO 4 NC 1 5 VDD Voltage detection pin between VM pin and VSS pin (Overcurrent / charger detection pin) Connection pin of charge control FET gate (CMOS output) No connection Connection pin for positive power supply input 6 VSS Connection pin for negative power supply input 1.

Features

High-accuracy voltage detection circuit Overcharge detection voltage 3.5 V to 4.5 V (5 mV step) Accuracy ±20 mV (Ta = +25°C) Overcharge release voltage 3.1 V to 4.5 V.
1 Accuracy ±25 mV (Ta =.
10°C to +60°C) Accuracy ±30 mV Overdischarge detection voltage Overdischarge release voltage 2.0 V to 3.4 V (10 mV step) 2.0 V to 3.4 V.
2 Accuracy ±35 mV Accuracy ±50 mV Discharge overcurrent detection voltage 0.05 V to 0.20 V (10 mV step) Accuracy ±10 mV Charge overc.
