S-82K4B, S-82K3B - BATTERY PROTECTION IC

ABLIC

📥 Download Datasheet

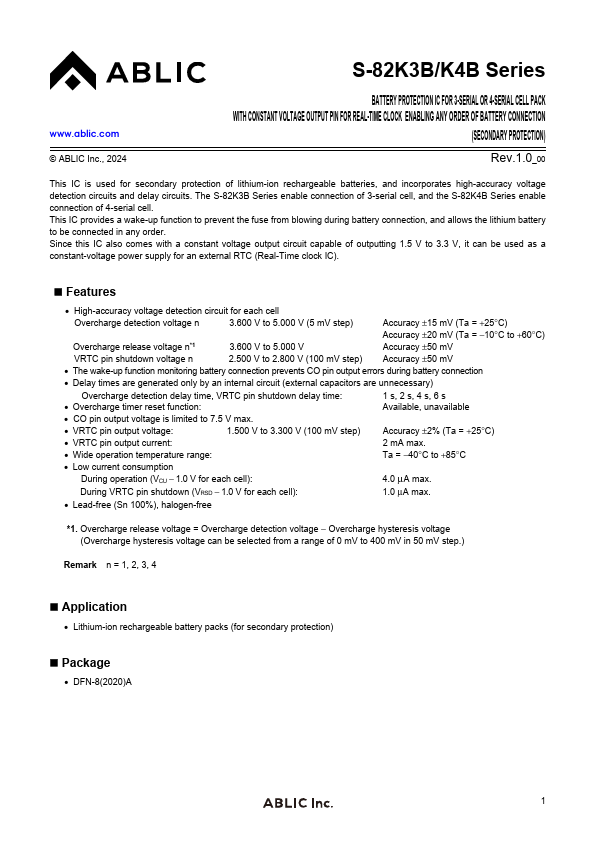

S-82K4B Datasheet Preview — This datasheet PDF includes multiple part numbers: S-82K4B, S-82K3B. Please refer to the document for exact specifications by model.

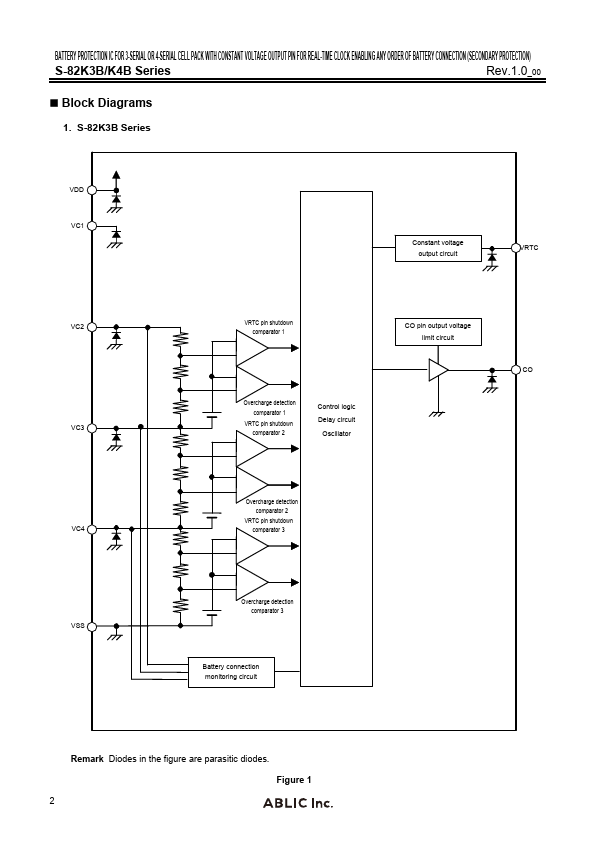

datasheet Preview Page 2

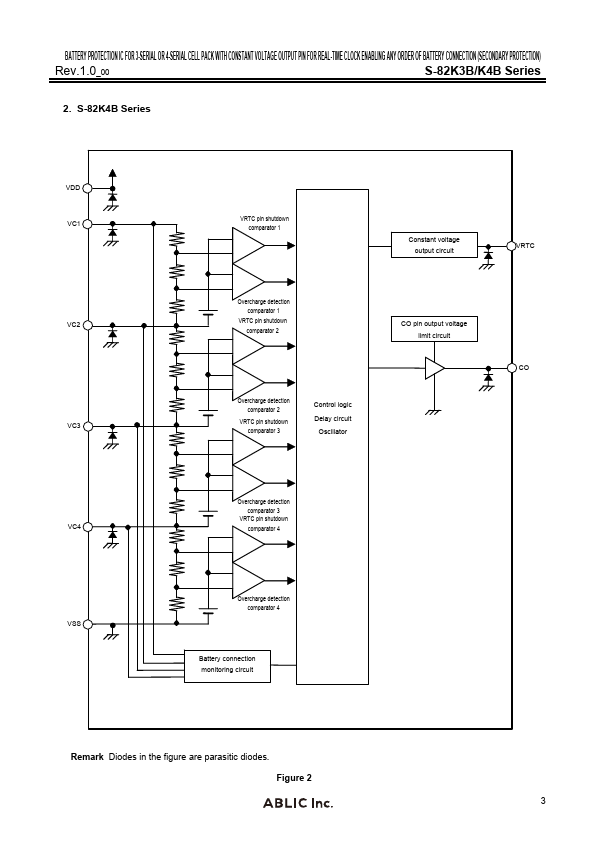

datasheet Preview Page 3

Datasheet Details

Part number	S-82K4B, S-82K3B
Manufacturer	ABLIC ↗
File Size	546.36 KB
Description	BATTERY PROTECTION IC
Datasheet	S-82K3B-ABLIC.pdf
Note	This datasheet PDF includes multiple part numbers: S-82K4B, S-82K3B. Please refer to the document for exact specifications by model.

S-82K4B Product details

Features

High-accuracy voltage detection circuit for each cell Overcharge detection voltage n 3.600 V to 5.000 V (5 mV step) Accuracy ±15 mV (Ta = +25°C) Accuracy ±20 mV (Ta =.
10°C to +60°C) Overcharge release voltage n.
1 3.600 V to 5.000 V Accuracy ±50 mV VRTC pin shutdown voltage n 2.500 V to 2.800 V (100 mV step) Accuracy ±50 mV.
The wake-up function monitoring battery connection prevents CO pin output errors during battery connection.
Delay times.
