A31G112 - General Purpose Cortex-M0+ Microcontroller

Datasheet Summary

Description

8 1.1 Device overview 9 1.2 Block diagram 10 1.3 Functional description 11 1.3.1 ARM Cortex-M0+ 11 1.3.2 Nested vector-interrupt controller (NVIC) 11 1.3.3 32KB/16KB internal code flash memory 11 1.3.4 4KB internal SRAM 11 1.3.5 Boot logic 11 1.3.6 System Control Unit (SCU)

Features

  • High performance Cortex-M0+ core.
  • 32KB/16KB code flash memory.
  • 4KB SRAM.
  • LED Display Drive Capability.
  • Max. 120mA of sink current capability for output of 6 pins(PD0 to PD5).
  • Watchdog Timer.
  • Six general purpose timers.
  • Periodic, one-shot, PWM, capture.
  • 12-bit ADC, 50ksps.
  • 11-channel inputs.
  • External communication ports.
  • 2xUSART(UART + SPI).
  • 2xI2C.
  • 2xUART.
  • Clock monitoring function for system clock.

📥 Download Datasheet

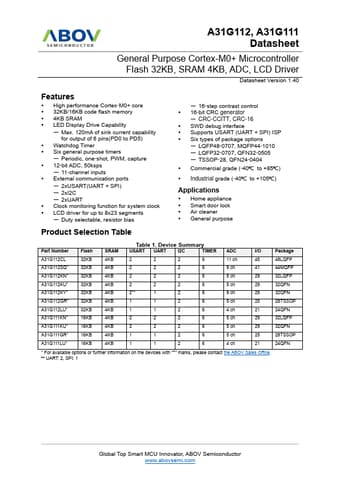

Datasheet preview – A31G112

Datasheet Details

Part number A31G112
Manufacturer ABOV
File Size 2.28 MB
Description General Purpose Cortex-M0+ Microcontroller
Datasheet download datasheet A31G112 Datasheet
Additional preview pages of the A31G112 datasheet.

📁 Similar Datasheet

  • A31 - highly integrated mobile application processor (Allwinner Technology)
  • A31-1 - 10 TO 2000 MHz CECASCADABLE AMPLIFIER (Tyco Electronics)
  • A310 - Triode (Philips)
  • A31004 - Unidirectional Linear Hall-Effect Sensor (Allegro)
  • A31010 - Low-Power Unidirectional Linear Hall-Effect Sensor (Allegro)
  • A31101AP - COMPANDER IC (Toshiba Semiconductor)
  • A31102 - Programmable Linear Hall-IC (Allegro)
  • A311D - advanced AI application processor (AMLOGIC)
  • A3121 - HALL-EFFECT SWITCHES FOR HIGH-TEMPERATURE OPERATION (Allegro MicroSystems)
  • A3122 - HALL-EFFECT SWITCHES FOR HIGH-TEMPERATURE OPERATION (Allegro MicroSystems)
Other Datasheets by ABOV
  • A31G111 - General Purpose Cortex-M0+ Microcontroller
  • A31G212 - 32-bit Microcontroller
  • A31G213 - 32-bit Microcontroller
  • A31G224 - 32-bit Microcontroller
  • A31G226 - 32-bit Microcontroller
  • A31G323 - 32-bit Microcontroller
  • A31G324 - 32-bit Microcontroller
  • A31T214 - 32-bit Touch Sensing Microcontroller

Full PDF Text Transcription

Click to expand full text
A31G112, A31G111 Datasheet General Purpose Cortex-M0+ Microcontroller Flash 32KB, SRAM 4KB, ADC, LCD Driver Datasheet Version 1.40 Features  High performance Cortex-M0+ core  32KB/16KB code flash memory  4KB SRAM  LED Display Drive Capability — Max.
