ADM15P06D P-Channel MOSFET

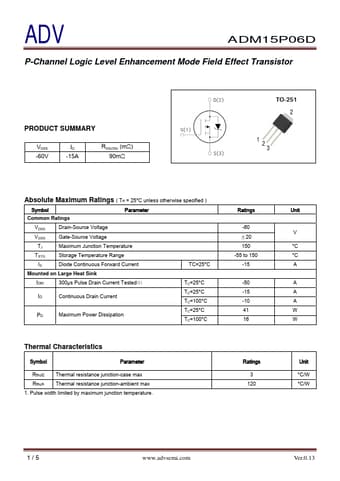

ADV ADM15P06D P-Channel Logic Level Enhancement Mode Field Effect Transistor PRODUCT SUMMARY VDSS -60V ID -15A RDS(ON) (mΩ) 90mΩ TO-251 2 1 23 Absolute Maximum Ratings ( TA = 25°C unless otherwise specified ) Symbol Parameter Common Ratings VDSS Drain-Source Voltage VGSS Gate-Source Voltage TJ Maximum Junction Temperature TSTG Storage Temperature Range IS Diode Continuous Forward Current TC=25°C Mounted on Large Heat Sink IDM 300μs Pulse Drain Current Tested⑴ ID Contin.

ADM15P06D Datasheet (466.17 KB)
