ADM15P06E Datasheet - ADV

ADM15P06E P-Channel MOSFET

ADV ADM15P06E P-Channel Logic Level Enhancement Mode Field Effect Transistor PRODUCT SUMMARY VDSS -60V ID -15A RDS(ON) (mĪ©) 90mĪ© TO-252 2 1 2 3 Absolute Maximum Ratings ( TA = 25Ā°C unless otherwise specifed ) Symbol Parameter Common Ratings VDSS Drain-Source Voltage VGSS Gate-Source Voltage TJ Maximum Junction Temperature TSTG Storage Temperature Range IS Diode Continuous Forward Current TC=25Ā°C Mounted on Large Heat Sink IDM 300Ī¼s Pulse Drain Current Testedā‘“ ID Contin.

ADM15P06E Datasheet (483.23 KB)

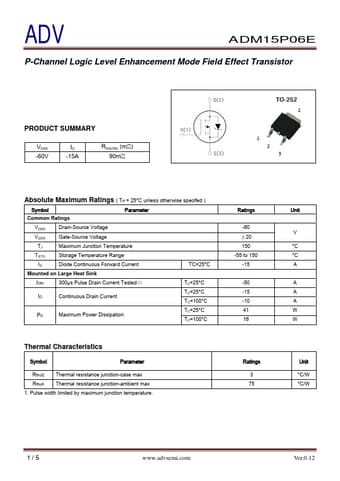

Preview of ADM15P06E PDF
ADM15P06E Datasheet Preview Page 2 ADM15P06E Datasheet Preview Page 3

Datasheet Details

Part number:

ADM15P06E

Manufacturer:

ADV

File Size:

483.23 KB

Description:

P-channel mosfet.
