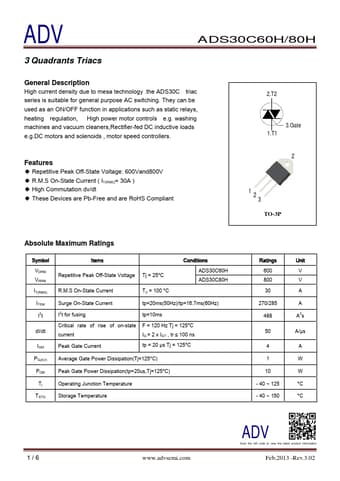

ADS30C60H Datasheet Preview — Preview of ADS30C60H PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: ADS30C60H
Manufacturer: ADV
File Size: 264.48 KB
Datasheet: ADS30C60H-ADV.pdf
Description: 3 Quadrants Triacs

ADS30C60H Product details

Description

High current density due to mesa technology .the ADS30C triac series is suitable for general purpose AC switching..

Features

Repetitive Peak Off-State Voltage: 600Vand800V.
R. M. S On-State Current ( IT(RMS)= 30A ).
High Commutation dv/dt.
These Devices are Pb-Free and are RoHS Compliant 2.T2 3.Gate 1.T1 2 1 23 TO-3P Absolute Maximum Ratings Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG(AV) PGM Tj TSTG Items Repetitive Peak Off-State Voltage Tj = 25°C R. M. S On-State Current TC = 100 °C Conditions ADS30C60H ADS30C80H Surge On-State Current tp=20ms(50.
