ADS30C80H, ADS30C60H, 3 Quadrants Triacs

ADV ADS30C60H/80H 3 Quadrants Triacs General .
High current density due to mesa technology .

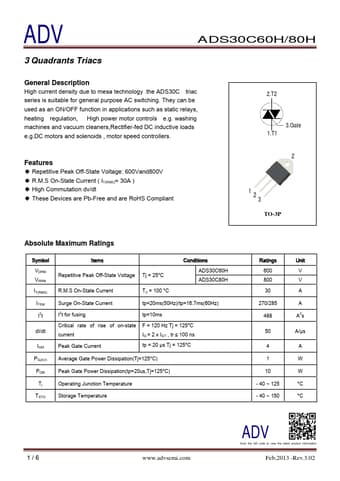

datasheet Preview Page 1 from Datasheet4u.com

ADS30C60H-ADV.pdf

ADS30C80H Datasheet Preview — This datasheet PDF includes multiple part numbers: ADS30C80H, ADS30C60H. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ADS30C80H, ADS30C60H

Manufacturer:

ADV

File Size:

264.48 KB

Description:

3 Quadrants Triacs

Note:

This datasheet PDF includes multiple part numbers: ADS30C80H, ADS30C60H.
Please refer to the document for exact specifications by model.

Features

* Repetitive Peak Off-State Voltage: 600Vand800V
* R. M. S On-State Current ( IT(RMS)= 30A )
* High Commutation dv/dt
* These Devices are Pb-Free and are RoHS Compliant 2.T2 3.Gate 1.T1 2 1 23 TO-3P Absolute Maximum Ratings Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG(AV) PGM Tj T
