ADS30C80F, ADS30C60F Datasheet - ADV

ADS30C80F - 3 Quadrants Triacs

High current density due to mesa technology .the ADS30C triac series is suitable for general purpose AC switching.

They can be used as an ON/OFF function in applications such as static relays, heating regulation, High power motor controls e.g.

washing machines and vacuum cleaners,Rectifier-fed DC in

ADS30C80F Features

* Repetitive Peak Off-State Voltage: 600Vand800V

* R.M.S On-State Current ( IT(RMS)= 30A )

* High Commutation dv/dt

* These Devices are Pb-Free and are RoHS Compliant 1 23 TO-220F Absolute Maximum Ratings Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG(AV) PGM Tj TSTG Items Repet

ADS30C60F-ADV.pdf

This datasheet PDF includes multiple part numbers: ADS30C80F, ADS30C60F. Please refer to the document for exact specifications by model.

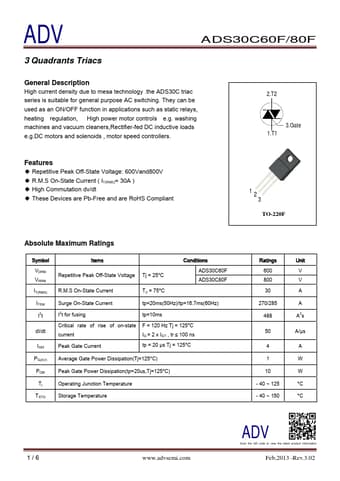

ADS30C80F Datasheet Preview Page 2 ADS30C80F Datasheet Preview Page 3

Datasheet Details

Part number:

ADS30C80F, ADS30C60F

Manufacturer:

ADV

File Size:

264.45 KB

Description:

3 quadrants triacs.

Note:

This datasheet PDF includes multiple part numbers: ADS30C80F, ADS30C60F.
Please refer to the document for exact specifications by model.
