ADS40A120

SCRs

ADS40A120 Features

* Repetitive Peak Off-State Voltage : 1000V and 1200V

* R.M.S On-State Current ( IT(RMS)=40 A )

* These are Pb-Free Devices 2 1 23 TO-220 Absolute Maximum Ratings Symbol VDRM VRRM IT(AV) IT(RMS) ITSM I2t PGM PG(AV) IGM Tj TSTG Items Repetitive Peak Off-State Voltage Repetitive peak r

ADS40A120 General Description

The 40A SCR series of silicon controlled rectifiers,with high ability to withstand the shock loading of large current,provide high dv/dt rate with strong resistance to electromagnetic interference.They are especially recommended for use on solid state relay,motorcycle, power charger,T-tools etc. 3..

ADS40A120 Datasheet (293.03 KB)

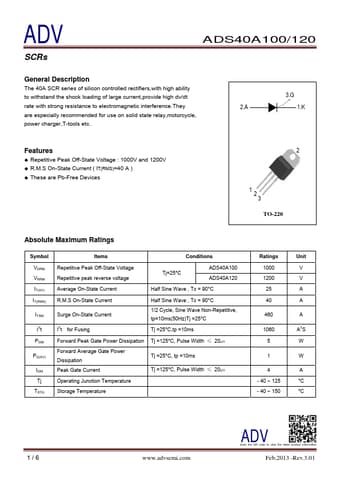

ADS40A120 Datasheet Preview — Preview of ADS40A120 PDF

Datasheet Details

Part number:

ADS40A120

Manufacturer:

ADV

File Size:

293.03 KB

Description:

Scrs.
