ADS40A60F SCRs

Description

ADV ADS40A60F/80F SCRs General .
The 40A SCR series of silicon controlled rectifiers,with high ability to withstand the shock loading of large current,provide high dv/dt rate with str.

📥 Download Datasheet

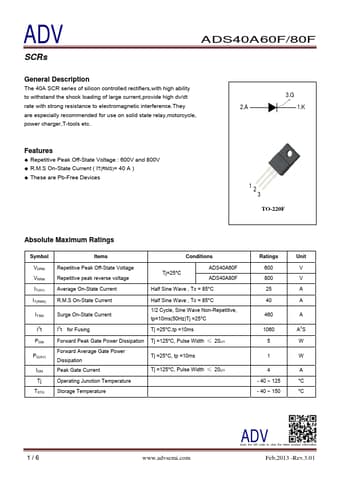

ADS40A60F Datasheet Preview — Preview of ADS40A60F PDF

Datasheet Specifications

Part number: ADS40A60F
Manufacturer: ADV
File Size: 289.78 KB
Datasheet: ADS40A60F-ADV.pdf
Description: SCRs

Features

* Repetitive Peak Off-State Voltage : 600V and 800V
* R. M. S On-State Current ( IT(RMS)= 40 A )
* These are Pb-Free Devices 1 23 TO-220F Absolute Maximum Ratings Symbol VDRM VRRM IT(AV) IT(RMS) ITSM I2t PGM PG(AV) IGM Tj TSTG Items Repetitive Peak Off-State Voltage Repetitive peak rev
