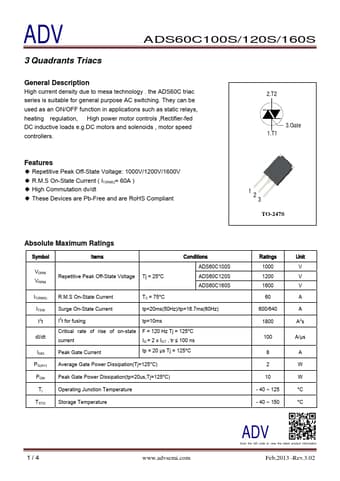

ADS60C100S 3 Quadrants Triacs

High current density due to mesa technology . the ADS60C triac series is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, High power motor controls ,Rectifier-fed DC inductive loads e.g.DC motors and solenoid.

ADS60C100S Features

* Repetitive Peak Off-State Voltage: 1000V/1200V/1600V

* R.M.S On-State Current ( IT(RMS)= 60A )

* High Commutation dv/dt

* These Devices are Pb-Free and are RoHS Compliant 1 23 TO-247S Absolute Maximum Ratings Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG(AV) PGM Tj TSTG Items
