ADS6D60 Datasheet - ADV

ADS6D60 - 4 Quadrants Triacs

High current density due to mesa technology .the ADS6D triac series is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, High power motor controls e.g. washing machines and vacuum cleaners,Rectifier-fed DC ind.

ADS6D60 Features

* Repetitive Peak Off-State Voltage: 600Vand800V

* R.M.S On-State Current ( IT(RMS)= 6A )

* High Commutation dv/dt

* These Devices are Pb-Free and are RoHS Compliant 2.T2 3.Gate 1.T1 2 1 23 TO-220 Absolute Maximum Ratings Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG(AV) PGM Tj T

ADS6D60-ADV.pdf

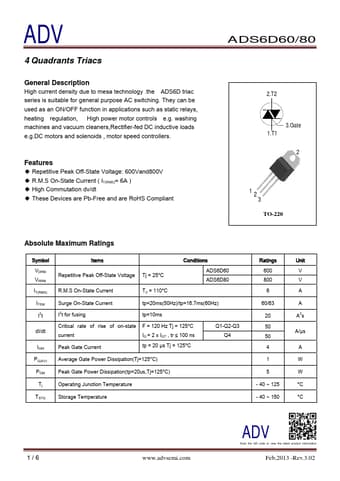

ADS6D60 Datasheet Preview — Preview of ADS6D60 PDF

Datasheet Details

Part number:

ADS6D60

Manufacturer:

ADV

File Size:

264.29 KB

Description:

4 quadrants triacs.
