ADS6D80D

4 Quadrants Triacs

ADS6D80D Features

* Repetitive Peak Off-State Voltage: 600Vand800V

* R.M.S On-State Current ( IT(RMS)= 6A )

* High Commutation dv/dt

* These Devices are Pb-Free and are RoHS Compliant 2.T2 3.Gate 1.T1 2 123 TO-251 Absolute Maximum Ratings Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG(AV) PGM Tj TS

ADS6D80D General Description

High current density due to mesa technology .the ADS6D triac series is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, High power motor controls e.g. washing machines and vacuum cleaners,Rectifier-fed DC ind.

ADS6D80D Datasheet (261.82 KB)

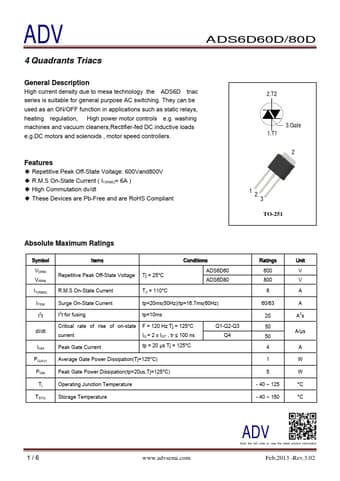

ADS6D80D Datasheet Preview — Preview of ADS6D80D PDF

Datasheet Details

Part number:

ADS6D80D

Manufacturer:

ADV

File Size:

261.82 KB

Description:

4 quadrants triacs.
