ADS6D80F Datasheet, Triacs, ADV

ADS6D80F Features

  • Triacs
  • Repetitive Peak Off-State Voltage: 600Vand800V
  • R.M.S On-State Current ( IT(RMS)= 6A )
  • High Commutation dv/dt
  • These Devices are Pb-Free and are Ro

PDF File Details

Part number:

ADS6D80F

Manufacturer:

ADV

File Size:

261.13kb

Download:

📄 Datasheet

Description:

4 quadrants triacs. High current density due to mesa technology .the ADS6D triac series is suitable for general purpose AC switching. They can be used as

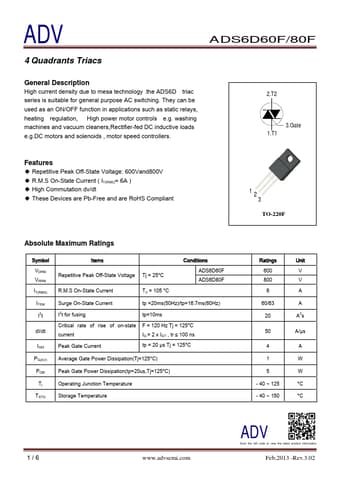

Datasheet Preview: ADS6D80F 📥 Download PDF (261.13kb)
Page 2 of ADS6D80F Page 3 of ADS6D80F

ADS6D80F Application

  • Applications such as static relays, heating regulation, High power motor controls e.g. washing machines and vacuum cleaners,Rectifier-fed DC inducti
