ADT8CH60F 3 Quadrants High temperature Triacs

ADT8CH60F Description

  ADV 3 Quadrants High temperature Triacs       ADT8CH60F/80F General .
High current density due to mesa technology , guaranteed maximum junction temperature 150° C.

ADT8CH60F Features

* Repetitive Peak Off-State Voltage: 600V/800V
* R. M. S On-State Current ( IT(RMS)= 8A )
* High Commutation dv/dt
* High junction temperature operating capability
* These Devices are Pb-Free and are RoHS Compliant 2.T2 3.Gate 1.T1 1 23 TO-220F Absolute Maximum Ratings Symbol VD

ADT8CH60F Applications

* such as static relays, heating regulation, High power motor controls e. g. washing machines and vacuum cleaners,Rectifier-fed DC inductive loads e. g. DC motors and solenoids , motor speed controllers. The heatsink can be reduced,compared to traditional triacs, according to the high performance at give

📥 Download Datasheet

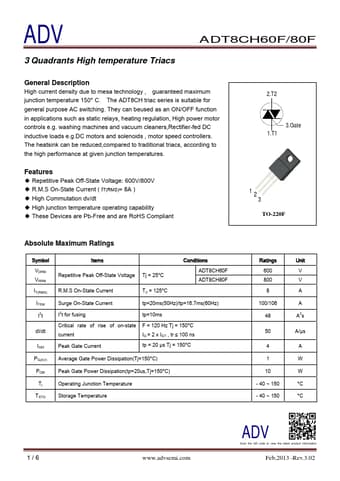

Preview of ADT8CH60F PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ADT8CH60F
Manufacturer
ADV
File Size
254.60 KB
Datasheet
ADT8CH60F-ADV.pdf
Description
3 Quadrants High temperature Triacs
