ADT8CH80G

3 Quadrants High temperature Triacs

ADT8CH80G Features

* Repetitive Peak Off-State Voltage: 600V/800V

* R.M.S On-State Current ( IT(RMS)= 8A )

* High Commutation dv/dt

* High junction temperature operating capability

* These Devices are Pb-Free and are RoHS Compliant 2.T2 3.Gate 1.T1 2 12 3 TO-263-2 Absolute Maximum Ratings Symbol

ADT8CH80G General Description

High current density due to mesa technology , guaranteed maximum junction temperature 150° C. The ADT8CH triac series is suitable for general purpose AC switching. They can beused as an ON/OFF function in applications such as static relays, heating regulation, High power motor controls e.g. washing .

ADT8CH80G Datasheet (257.11 KB)

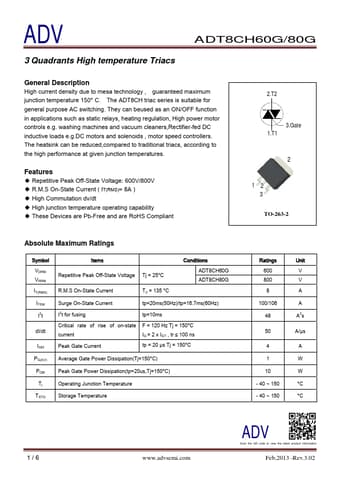

Preview of ADT8CH80G PDF

Datasheet Details

Part number:

ADT8CH80G

Manufacturer:

ADV

File Size:

257.11 KB

Description:

3 quadrants high temperature triacs.
