ADT8CH80, ADT8CH60 3 Quadrants High temperature Triacs

ADT8CH80 Description

  ADV 3 Quadrants High temperature Triacs       ADT8CH60/80 General .
High current density due to mesa technology , guaranteed maximum junction temperature 150° C.

ADT8CH80 Features

* Repetitive Peak Off-State Voltage: 600V/800V
* R. M. S On-State Current ( IT(RMS)= 8A )
* High Commutation dv/dt
* High junction temperature operating capability
* These Devices are Pb-Free and are RoHS Compliant 2.T2 3.Gate 1.T1 2 1 23 TO-220 Absolute Maximum Ratings Symbol V

ADT8CH80 Applications

* such as static relays, heating regulation, High power motor controls e. g. washing machines and vacuum cleaners,Rectifier-fed DC inductive loads e. g. DC motors and solenoids , motor speed controllers. The heatsink can be reduced,compared to traditional triacs, according to the high performance at give

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ADT8CH80, ADT8CH60. Please refer to the document for exact specifications by model.

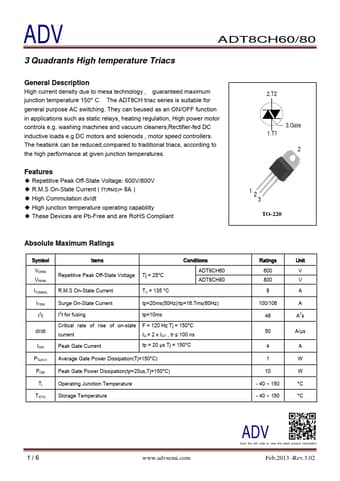

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ADT8CH80, ADT8CH60
Manufacturer
ADV
File Size
258.10 KB
Datasheet
ADT8CH60-ADV.pdf
Description
3 Quadrants High temperature Triacs
Note
This datasheet PDF includes multiple part numbers: ADT8CH80, ADT8CH60.
Please refer to the document for exact specifications by model.
