AK1575

Up Converter Mixer

AK1575 Features

* General        RF output frequency Range IF input frequency Range LO frequency Range Supply Voltage : Current Consumption: Package: Operating Temperature : 690MHz to 4.0GHz 20MHz to 500MHz 262.5MHz to 4.4GHz 4.75V to 5.25 V (Mixer) 2.7 to 3.6V / 4.75 to 5.25V (Synthesizer /VCO) 150mA typ. 3

AK1575 General Description

and Assignment ________________________________ 4 Absolute Maximum Rating _____________________________________________ 6 Recommended Operating Range ________________________________________ 7 Electrical Characteristics ______________________________________________ 7 Block Functional Descriptions _.

AK1575 Datasheet (828.53 KB)

Preview of AK1575 PDF

Datasheet Details

Part number:

AK1575

Manufacturer:

AKM

File Size:

828.53 KB

Description:

Up converter mixer.

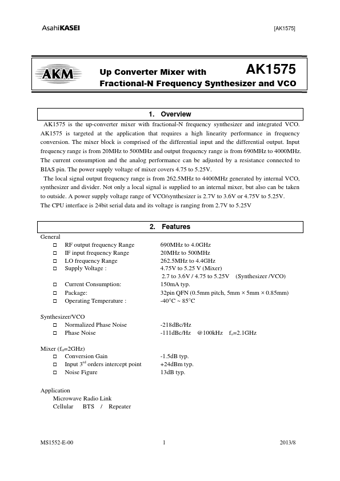

[AK1575] Up Converter Mixer with Fractional-N Frequency Synthesizer and VCO AK1575 1. Overview AK1575 is the up-converter mixer with fractional-N f.
