AK1573C, AK1573 Datasheet - AKM

AK1573C, AK1573, Frequency Synthesizer

[AK1573/AK1573B/AK1573C] AK1573/AK1573B/AK1573C Frequency Synthesizer with Integrated VCO 1.General .
AK1573 is the Integer-N frequency synthesizer with integrated VCO (Voltage Controlled Oscillator).

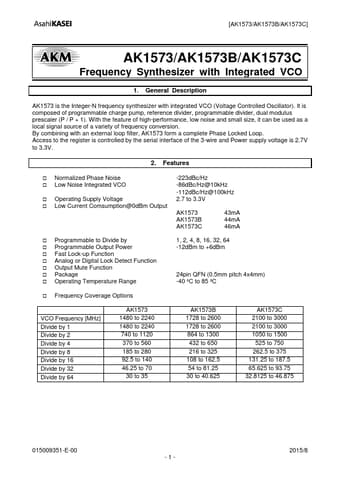

datasheet Preview Page 1 from Datasheet4u.com

AK1573-AKM.pdf

AK1573C Datasheet Preview — This datasheet PDF includes multiple part numbers: AK1573C, AK1573. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AK1573C, AK1573

Manufacturer:

AKM

File Size:

1.49 MB

Description:

Frequency Synthesizer

Note:

This datasheet PDF includes multiple part numbers: AK1573C, AK1573.
Please refer to the document for exact specifications by model.

Features

*  Normalized Phase Noise -223dBc/Hz  Low Noise Integrated VCO -86dBc/Hz@10kHz -112dBc/Hz@100kHz  Operating Supply Voltage 2.7 to 3.3V  Low Current Comsumption@0dBm Output AK1573 43mA AK1573B 44mA AK1573C 46mA  Programmable to Divide by  Programmable Output Power  Fast Lock-up Fu
