AK1573 Datasheet, Synthesizer, AKM

AK1573 Features

  • Synthesizer  Normalized Phase Noise -223dBc/Hz  Low Noise Integrated VCO -86dBc/Hz@10kHz -112dBc/Hz@100kHz  Operating Supply Voltage 2.7 to 3.3V  Low Current Comsumption@0dBm Output AK

PDF File Details

Part number:

AK1573

Manufacturer:

AKM

File Size:

1.49MB

Download:

📄 Datasheet

Description:

Frequency synthesizer. AK1573 is the Integer-N frequency synthesizer with integrated VCO (Voltage Controlled Oscillator). It is composed of programmable ch

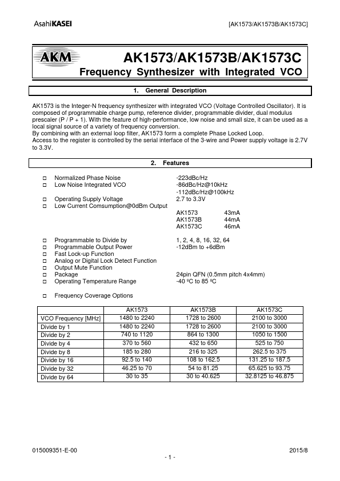

Datasheet Preview: AK1573 📥 Download PDF (1.49MB)
Page 2 of AK1573 Page 3 of AK1573

AK1573 Application

  • Applications  Public safety and Community/Emergency Wireless System  Wireless applications  Cellular BTS 015009351-E-00 -2- 2015/8 [AK1573/A
