AK4390 Datasheet - AKM

AK4390 Ultra Low Latency 32-Bit DAC

The AK4390 is a high performance stereo DAC capable of sampling up to 216kHz including a 32-bit digital filter. The modulator uses AKM's multi-bit architecture, delivering wide dynamic range while preserving linearity for improved THD+N performance. The AK4390 has fully differential switched-cap fil.

AK4390 Features

* 128-times Oversampling

* Sampling Rate: 30kHz ∼ 216kHz

* 32Bit 8x Digital Filter Ripple: ±0.005dB, Attenuation: 100dB Low latency option: 7/fs

* High Tolerance to Clock Jitter

* Low Distortion Differential Output

* Digital De-emphasis for 32, 44.1, 4

AK4390-AKM.pdf

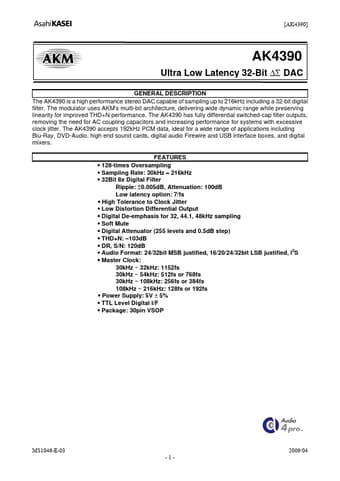

Preview of AK4390 PDF
AK4390 Datasheet Preview Page 2 AK4390 Datasheet Preview Page 3

Datasheet Details

Part number:

AK4390

Manufacturer:

AKM

File Size:

438.18 KB

Description:

Ultra low latency 32-bit dac.
