AK4394 Datasheet - Asahi Kasei Microsystems

ADVANCED MULTI-BIT 192KHZ 24-BIT DAC

AK4394 Features

* 128x Oversampling

* Sampling Rate up to 192kHz

* 24Bit 8x Digital Filter (Slow-roll-off option) Ripple: ±0.005dB, Attenuation: 75dB

* High Tolerance to Clock Jitter

* Low Distortion Differential Output

* Digital de-

AK4394 General Description

The AK4394 is a high performance stereo DAC for the 192kHz sampling mode of DVD-Audio including a 24bit digital filter. The AK4394 introduces the advanced multi-bit system for DS modulator. This new architecture achieves the wider dynamic range, while keeping much the same superior distortion charac.

AK4394 Datasheet (296.35 KB)

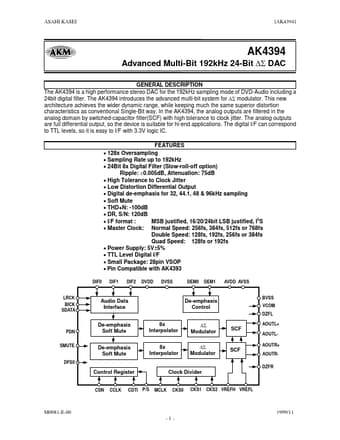

AK4394 Datasheet Preview — Preview of AK4394 PDF

Datasheet Details

Part number:

AK4394

Manufacturer:

Asahi Kasei Microsystems

File Size:

296.35 KB

Description:

Advanced multi-bit 192khz 24-bit dac.
