ADVANCED MULTI-BIT 96KHZ 24-BIT DAC

AK4393 Features

* 128x Oversampling

* Sampling Rate up to 108kHz

* 24Bit 8x Digital Filter Ripple: ±0.005dB, Attenuation: 75dB

* High Tolerance to Clock Jitter

* Low Distortion Differential Output

* Digital de-emphasis for 32

AK4393 General Description

The AK4393 is a high performance stereo DAC for the 96kHz sampling mode of DAT, DVD including a 24bit digital filter. The AK4393 introduces the advanced multi-bit system for ΔΣ modulator. This new architecture achieves the wider dynamic range, while keeping much the same superior distortion characte.

AK4393 Datasheet (248.91 KB)

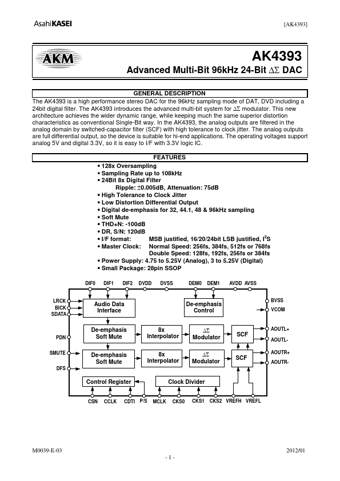

AK4393 Datasheet Preview — Preview of AK4393 PDF

Datasheet Details

Part number:

AK4393

Manufacturer:

Asahi Kasei Microsystems

File Size:

248.91 KB

Description:

Advanced multi-bit 96khz 24-bit dac.
