AK4396 Datasheet, Multi-bit Dac, AKM

Advanced multi-bit dac

Image	Manufacturer	Part Number	B2B mpn	Description	Distributor	In Stock	Quantity	Price	Buy Now
	Asahi Kasei Microsystems Corporation	AK4396	AK4396VF	IC DAC/AUDIO 24BIT 216K 28VSOP	DigiKey	0	2000 units	$2.22	🛒 Buy Now

📥 Download PDF (466.83 KB)

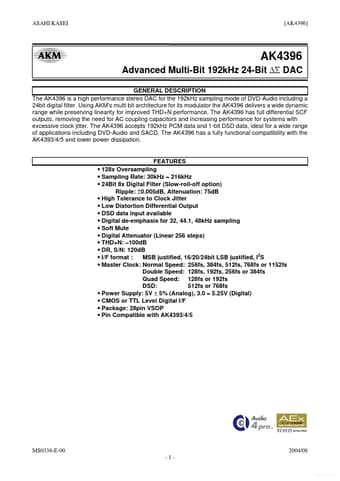

AK4396 Datasheet Preview Page 1 — Preview of AK4396 Datasheet

PDF File Details

Part number:

AK4396

Manufacturer:

AKM

File Size:

466.83 KB

Download:

📄 Download the AK4396 Datasheet PDF

Description:

Advanced multi-bit dac.
The AK4396 is a high performance stereo DAC for the 192kHz sampling mode of DVD-Audio including a 24bit digital filter.
Using AKM's multi bit architecture for its modulator the AK4396 delivers a wide .

✔ AK4396 Features

128x Oversampling
Sampling Rate: 30kHz ∼ 216kHz
24Bit 8x Digital Filter (Slow-roll-off option) Ripple: ±0.005dB, Attenuation: 75dB
High Tolerance to Clock Jitter

✔ AK4396 Application

including DVD-Audio and SACD. The AK4396 has a fully functional compatibility with the AK4393/4/5 and lower
