AK4413

High Performance 120dB 24-Bit 4ch DAC

AKM

AK4413 Features

* 128x Over sampling

* Sampling Rate: 30kHz ∼ 216kHz

* 24Bit 8x Digital Filter - Ripple: ±0.005dB, Attenuation: 80dB - High Quality Sound Short Delay Option; GD=7/fs and GD=5.5/fs - Sharp Roll-Off Filter - Slow Roll-Off Filter

* High Tolerance to Clock Jitter

AK4413 General Description

AK4413 is a 24-bit DAC, which corresponds to BD systems. An internal circuit includes newly developed 24bit Digital Filter for better sound q uality achiev ing low distortion charac teristics and wide dynamic range. The AK4413 has full differential SCF outputs, removing the need for AC coupling capa.

AK4413 Datasheet (875.58 KB)

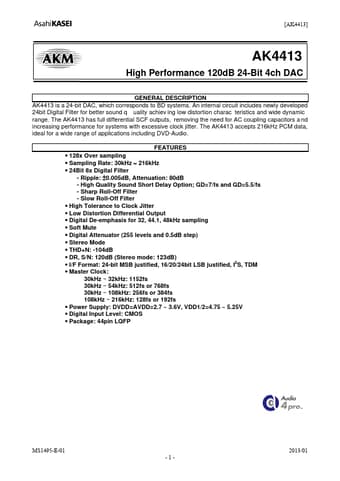

AK4413 Datasheet Preview — Preview of AK4413 PDF

Datasheet Details

Part number:

AK4413

Manufacturer:

AKM

File Size:

875.58 KB

Description:

High performance 120db 24-bit 4ch dac.
