AK4526A

High Performance Multi Channel Audio CODEC

AKM

AK4526A Features

* 2ch ADC with 20bit data output capability - 64x Oversampling - Sampling Rate up to 48kHz - Differential Inputs with single-ended use capability - S/(N+D): 92dB - Dynamic Range, S/N: 100dB - Digital HPF for offset cancellation - I/F format: MSB justified or I2S

* 6ch DAC with 24bit

AK4526A General Description

The AK4526A is a single chip CODEC that includes two channels of ADC and six channels of DAC. The ADC outputs 20bit data and the DAC accepts up to 24bit input data. The ADC has an enhanced dual bit architecture with wide dynamic range. The DAC achieves low outband noise and high jitter tolerance by .

AK4526A Datasheet (328.91 KB)

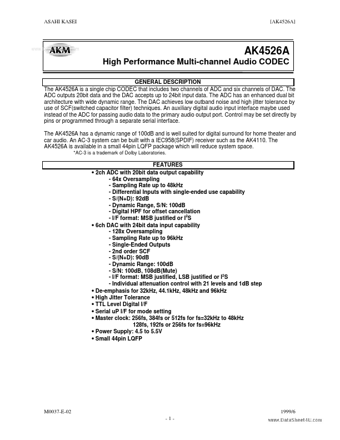

AK4526A Datasheet Preview — Preview of AK4526A PDF

Datasheet Details

Part number:

AK4526A

Manufacturer:

AKM

File Size:

328.91 KB

Description:

High performance multi channel audio codec.
