AK4522

20-BIT STEREO ADC/DAC

AK4522 Features

* ΔΣ Stereo ADC - 64x Oversampling - Sampling Rate Ranging from 16kHz to 48kHz - S/(N+D): 92dB - Dynamic Range, S/N: 100dB - Digital HPF for offset cancellation

* ΔΣ Stereo DAC - 128x Oversampling - Sampling Rate Ranging from 16kHz to 48kHz - 2nd order SCF + 2nd order CTF - Digital d

AK4522 General Description

The AK4522 has a dynamic range of 100dB and is well-suited middle-range MD, surround system, musical instruments and car audio. Signal inputs and outputs are single-ended. The DAC outputs are analog filtered to remove out of band noise. External components are minimized. The AK4522 is available in a.

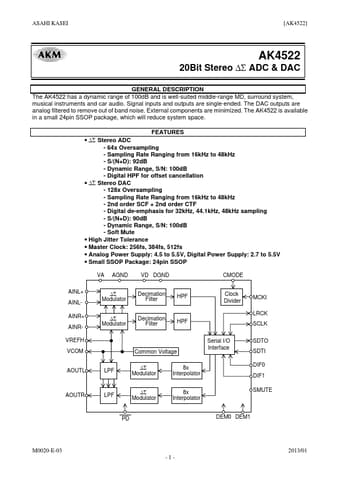

AK4522 Datasheet (170.97 KB)

Preview of AK4522 PDF

Datasheet Details

Part number:

AK4522

Manufacturer:

Asahi Kasei Microsystems

File Size:

170.97 KB

Description:

20-bit stereo adc/dac.
