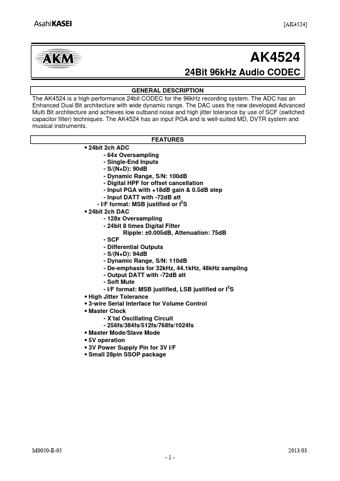

AK4524 Datasheet, codec equivalent, Asahi Kasei Microsystems

AK4524 Features

• Codec
• 24bit 2ch ADC - 64x Oversampling - Single-End Inputs - S/(N+D): 90dB - Dynamic Range, S/N: 100dB - Digital HPF for offset cancellation - Input PGA with +18dB gain & 0.5dB step

PDF File Details

Part number:

AK4524

Manufacturer:

Asahi Kasei Microsystems

File Size:

356.38kb

Download:

📄 Datasheet

Description:

24-bit 96khz audio codec. The AK4524 is a high performance 24bit CODEC for the 96kHz recording system. The ADC has an Enhanced Dual Bit architecture with wide
