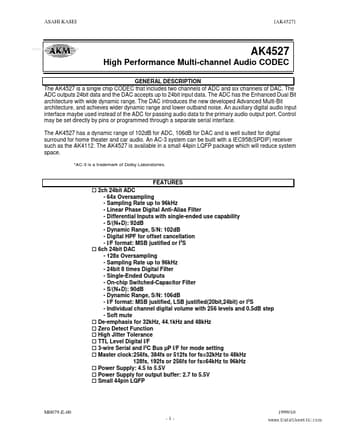

AK4527 High Performance Multi Channel Audio CODEC

The AK4527 is a single chip CODEC that includes two channels of ADC and six channels of DAC. The ADC outputs 24bit data and the DAC accepts up to 24bit input data. The ADC has the Enhanced Dual Bit architecture with wide dynamic range. The DAC introduces the new developed Advanced Multi-Bit architec.

AK4527 Features

* o 2ch 24bit ADC - 64x Oversampling - Sampling Rate up to 96kHz - Linear Phase Digital Anti-Alias Filter - Differential Inputs with single-ended use capability - S/(N+D): 92dB - Dynamic Range, S/N: 102dB - Digital HPF for offset cancellation - I/F format: MSB justified or I2S o 6ch 24bit DAC - 128x O
