Am8155

2048-Bit Static MOS RAM

Am8155 General Description

The Am8155 and Am8156 are RAM and I/O chips to be used in the Am8085A MPU system. The RAM portion is designed with 2K bit static cells organized as 256 x 8. They have a maximum access time of 400ns to permit use with no wait states in Am8085A CPU. The I/O portion consists of three general purpose I/.

Am8155 Datasheet (341.61 KB)

Preview of Am8155 PDF

Datasheet Details

Part number:

Am8155

Manufacturer:

AMD

File Size:

341.61 KB

Description:

2048-bit static mos ram.

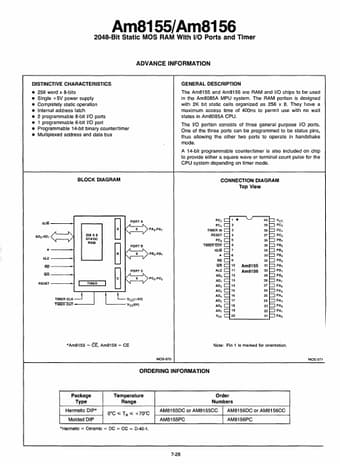

Am8155/ Am8156 2048-Bit Static MOS RAM With I/O Ports and Timer ADVANCE INFORMATION DISTINCTIVE CHARACTERISTICS

* 256 word x 8-bits

.
