BL02

CMOS Gate Array

BL02 General Description

BL02 is a tristate bus latch that stores the final binary level on the bus when left undriven. Logic Symbol Truth Table Pin Loading BL02 IO N/A Equivalent Load IO 1.6 Equivalent Gates 5.0 HDL Syntax Verilog BL02 inst_name (IO); VHDL inst_name: BL02 port map (IO); Size And Power Characteris.

BL02 Datasheet (17.22 KB)

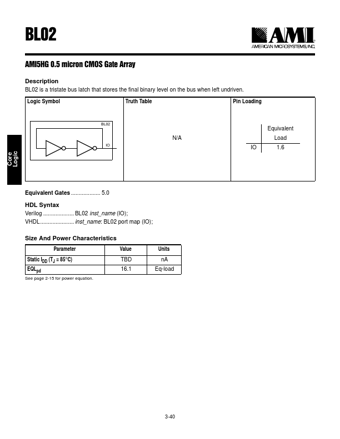

Preview of BL02 PDF

Datasheet Details

Part number:

BL02

Manufacturer:

AMI

File Size:

17.22 KB

Description:

Cmos gate array.
