BL022A

Wideband LNA Gain Block

BL022A Features

* Low Noise Figure: NF = 1.1 @ 1900MHz

* High Linearity: OIP3 = 35.5 dBm @ 1900 MHz

* Output P1 dB = 22 dBm @ 1900 MHz

* Gain = 19 dB @ 1900 MHz

* Internally matched to 50 ohms

* 5V/70mA, MTTF > 100 Years, MSL 1, Class 1A

* RoHS2-compliant SOT-

BL022A General Description

Electrical Specifications The BL022A is a high performance, wideband, LNA GaAs E-pHEMT gain block that is ideal for applications demanding low noise and high linearity in a wideband of 50-6000 MHz. The BL022A is internally matched to 50 Ohms and requires no external matching components. It is avai.

BL022A Datasheet (970.67 KB)

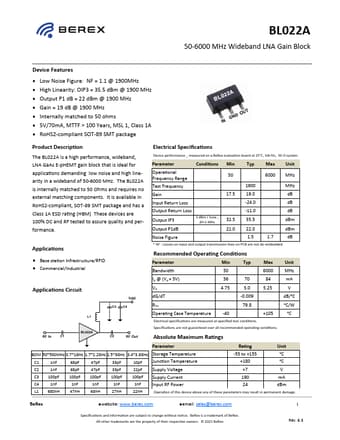

Preview of BL022A PDF

Datasheet Details

Part number:

BL022A

Manufacturer:

BeRex

File Size:

970.67 KB

Description:

Wideband lna gain block.
