BL083 - Wideband Low Nosie Amplifier

BL083 Description

BL083 50-4000 MHz Wideband Low Nosie Amplifier Device .
RF IN 3 RF OUT 6 GND 1,2,4,5 Product Description BeRex’s BL083 is a high performance LNA, based on GaAs material with E-pHEMT process and packag.

BL083 Features

* This can be operated at Vd of 3.0V
* N. F = 0.78 dB @ 1850MHz at Demo board
* 31.5 dBm Output IP3 at 0dBm/tone at 1850MHz
* 15.6 dB Gain at 1850MHz
* 17.7 dBm P1dB at 1850 MHz
* Green/RoHS2 Compliant SOT-363 SMT Package Part Marking (XX:Wafer number)

BL083 Applications

* Base station Infrastructure/RFID
* Commercial/Industrial/Military wireless system
* LTE / WCDMA /CDMA Wireless Infrastructure Applications Circuit RF In DC Block RF Choke BL083 Vdd Bypass DC Block RF Out
* External matching circuit : refer to the page 4 to 13 Ele

📥 Download Datasheet

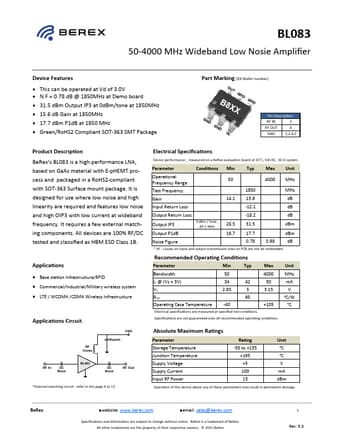

Preview of BL083 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BL083
Manufacturer
BeRex
File Size
814.96 KB
Datasheet
BL083-BeRex.pdf
Description
Wideband Low Nosie Amplifier
